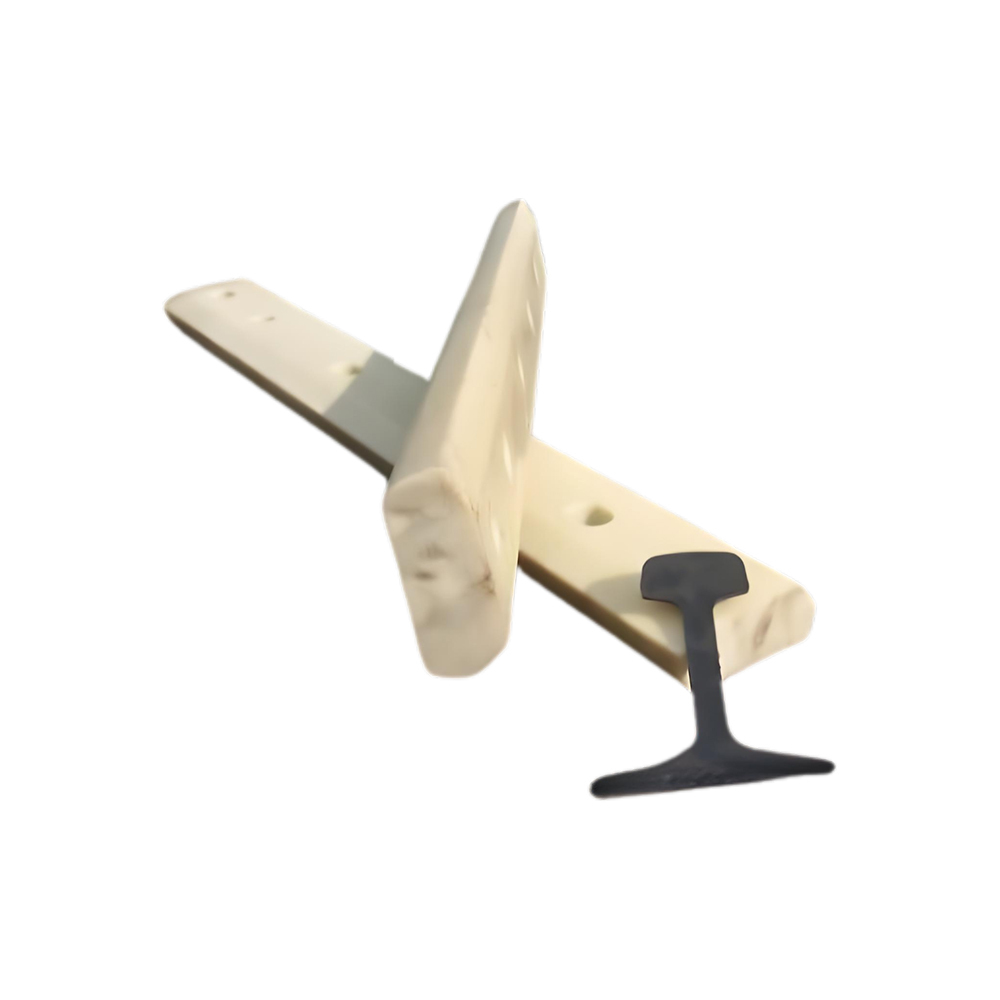

High Strength Electrical Resistance Insulated Rail Joint Fish Plate

  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
  • High Strength Electrical Resistance Insulated Rail Joint Fish Plate
Lugar de origem Chongqing, China
Marca HTR
Quantidade de ordem mínima 100
Preço Ngotiable
Detalhes da embalagem Exportar embalagem
Tempo de entrega Ngotiable
Termos de pagamento L/C, T/T, D/A, Western Union
Habilidade da fonte 50000 PCS por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Material Poliuretano, fibra de vidro Conteúdo de fibras ≥65 m-%
Módulo de flexão ≥25000 N/mm2 Absorção de água <0,05 %
Resistência à tracção ≥1653 kN Força de flexão ≥156,85 kN
Isolamento elétrico > 550 MΩ Resistência ao impacto ≥135 kJ/m2
Dimensões personalizado Referência ferroviária 60E1 (UIC60)
Tipo de instalação Nenhuns produtos químicos
Destacar

insulated rail joint fish plate

,

high strength rail joint

,

electrical resistance fish plate
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Deixe um recado
Descrição de produto
Product Description
Bonded insulated rail joints offer the highest possible electrical insulation properties and are practically fail-safe due to their design and materials. With exceptional mechanical strength and fatigue resistance, along with resistance to environmental effects like UV radiation, heat, moisture, and impurities, they are an ideal solution for both continuous welded rail (CWR) and jointed tracks. The rail joint design is simple, using a minimal number of parts. This allows for easy and fast installation without the need for handling chemicals, detergents, or welding.
Key Features
  • Fail-safe Functionality: Our rail joints offer the highest electrical insulation properties, ensuring virtually fail-safe performance in railway signaling systems.
  • Mechanical Strength: Comparable to steel and wooden joints, our fishplates are robust and durable, capable of withstanding environmental factors such as UV radiation, heat, moisture, and impurities.
  • Easy Installation: The simple design with minimal parts allows for quick and hassle-free installation, eliminating the need for chemicals, welding, or detergents.
  • Easy Replacement: Simple and fast replacement of existing joints (special repair joints are also available).
  • Cost Savings: The efficient installation process and durable materials result in significant total cost savings over the product's lifespan.
  • No Chemicals: Our rail joints require no glues or chemicals for installation or maintenance.

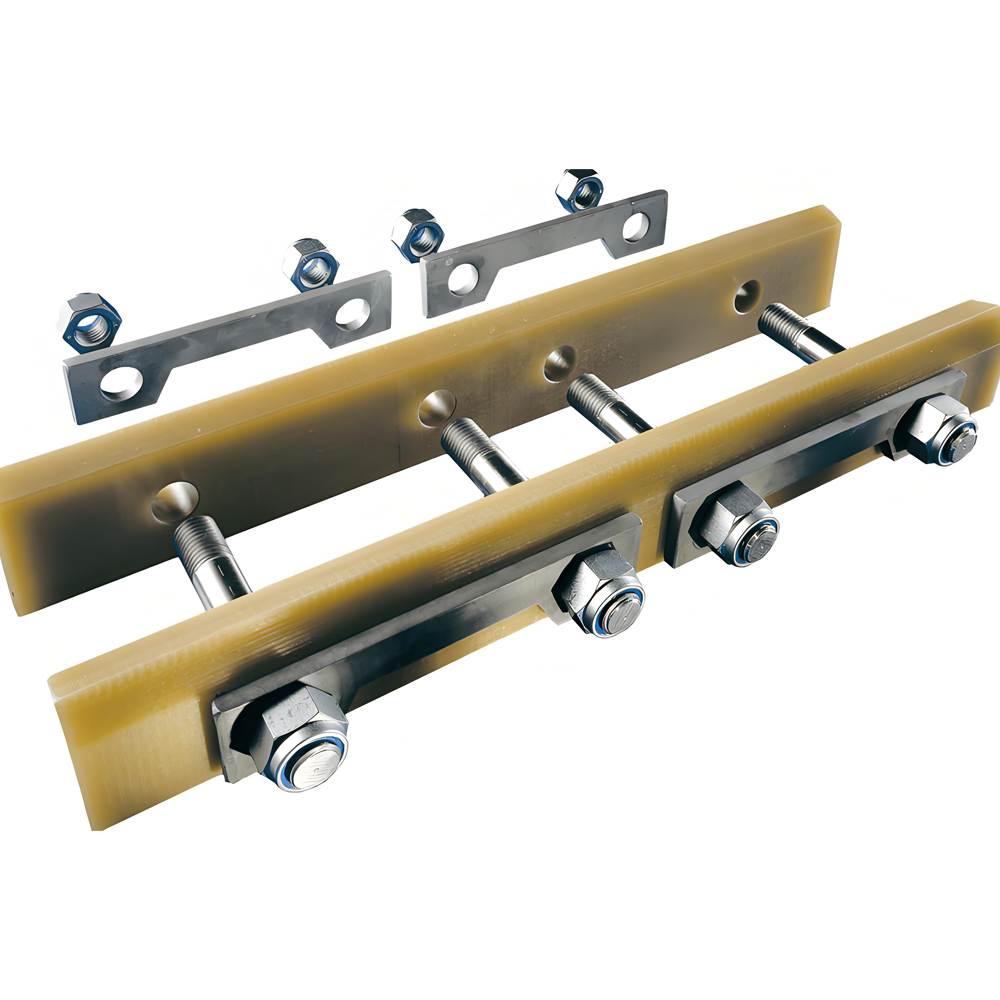

  • Customization: We offer individual fishplates and endplates, as well as complete kits with metal fixing parts, all customizable to meet specific requirements.

    Product Performance

    Reference Value

    Standard

    Chinese Standard

    Tensile Strength

    ≥1000MPA

    Break Elongation

    ≥1%

    Bending Strength

    ≥1080MPA

    Compression Strength

    ≥500MPA

    Shear Strength

    ≥160MPA

    Impact Strength

    ≥480kJ/m2

    Fiber Content

    ≥75%

    Drying Regime Insulating Property

    ＞20MΩ

    Dampness Insulating Property

    ＞1000Ω

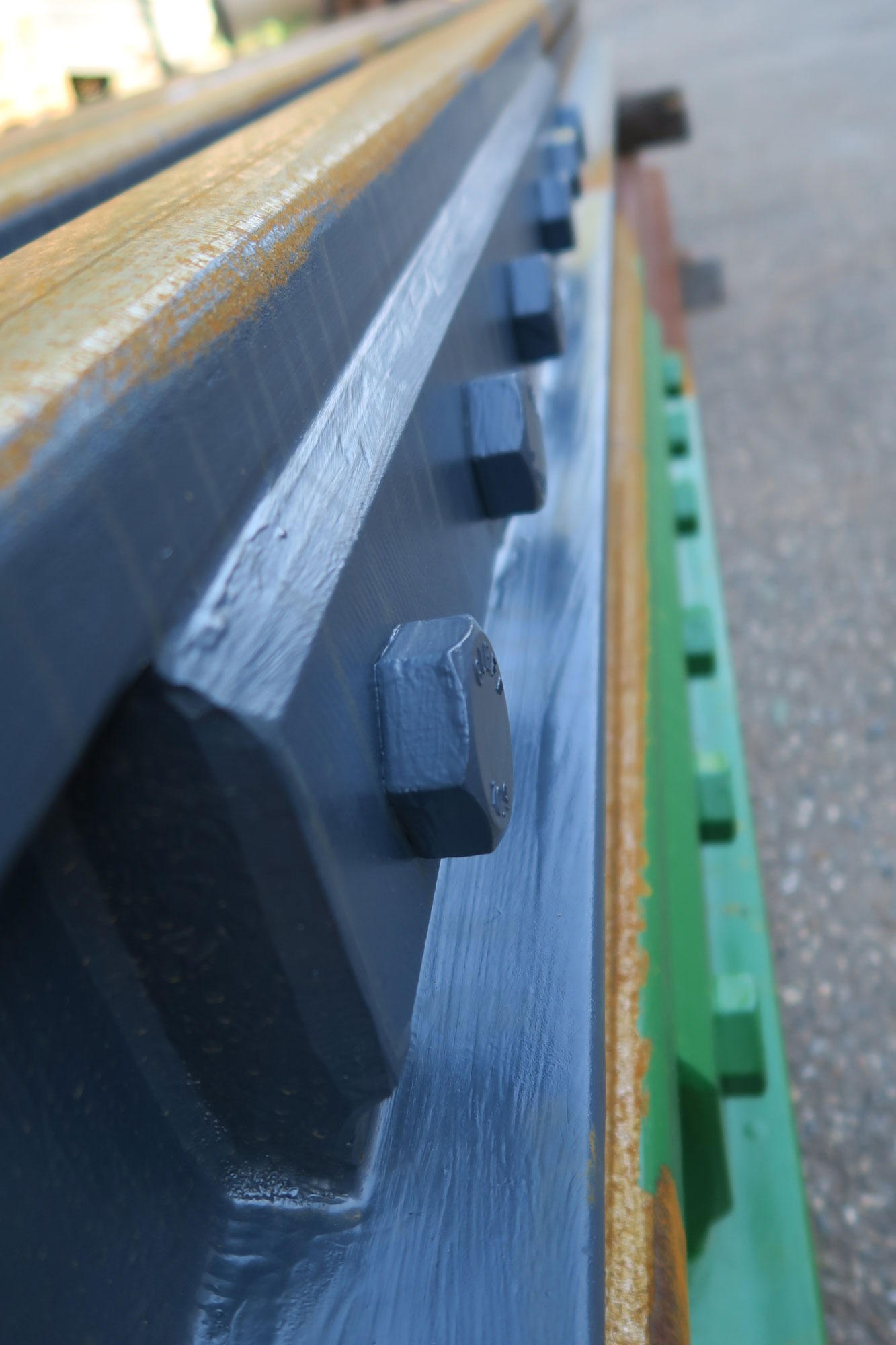

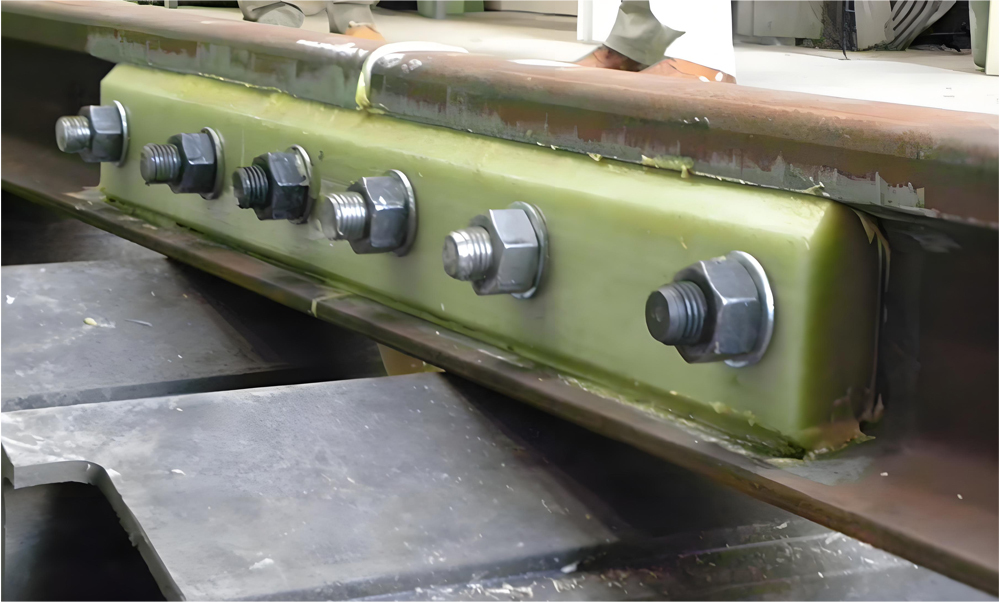

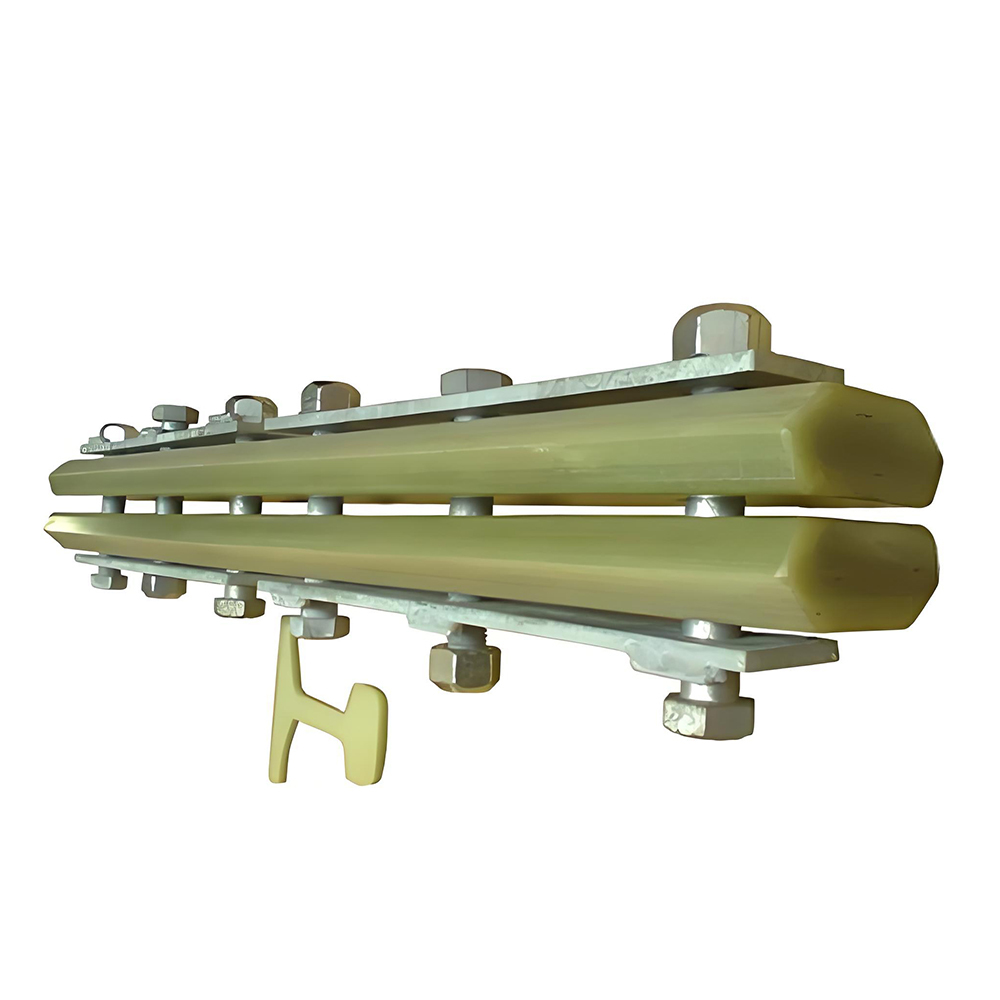

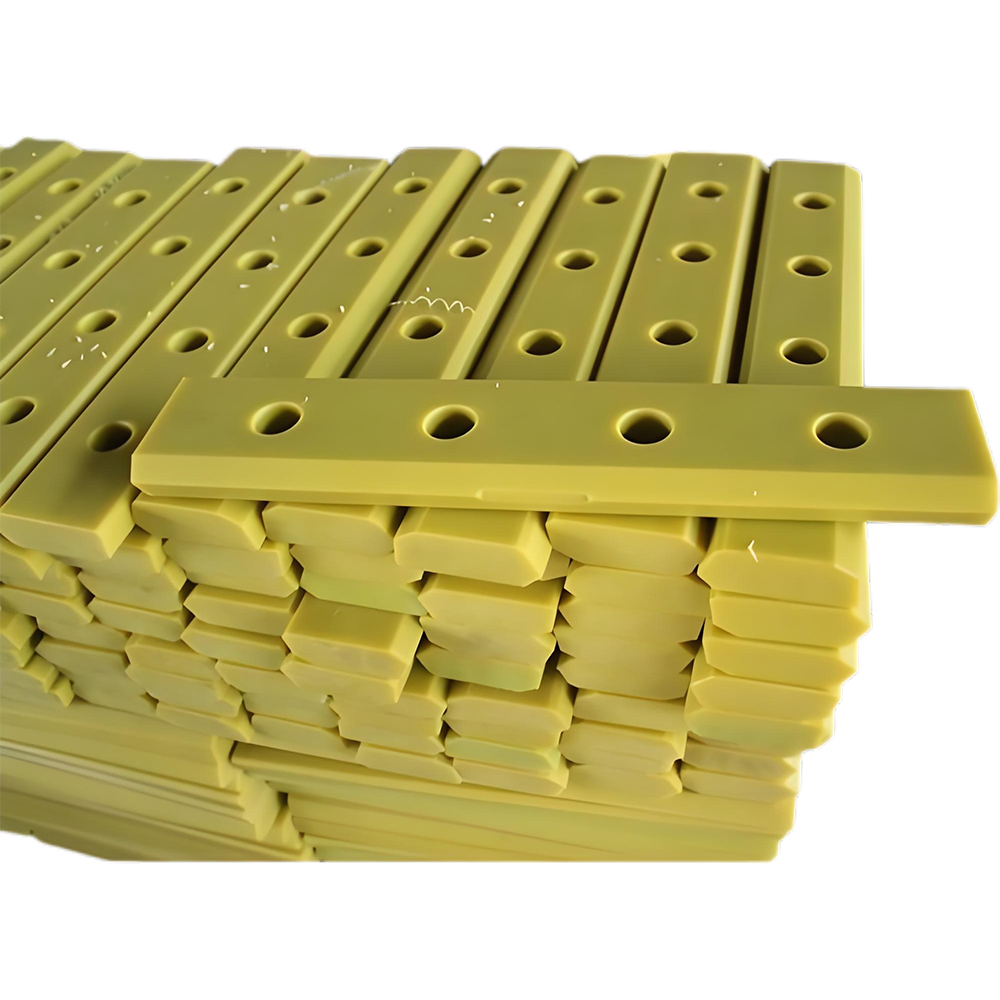

High Strength Electrical Resistance Insulated Rail Joint Fish Plate 0 High Strength Electrical Resistance Insulated Rail Joint Fish Plate 1 High Strength Electrical Resistance Insulated Rail Joint Fish Plate 2 High Strength Electrical Resistance Insulated Rail Joint Fish Plate 3
