High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks

  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
Lugar de origem China
Marca HTR
Quantidade de ordem mínima 1000
Preço Ngotiable
Detalhes da embalagem Embalagem de exportação
Tempo de entrega Negociável
Termos de pagamento L/C,T/T
Habilidade da fonte 50.000 unidades por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Nome do produto Isolador ferroviário Material Náilon (PA6, PA66, PA66+GF30%)
Recurso Alta resistência mecânica Padrão De acordo com as necessidades do cliente
Cor Personalizado Função Isolamento
Destacar

nylon rail insulators for railway

,

railway track nylon insulators

,

railway parts nylon insulators
Deixe um recado
Descrição de produto

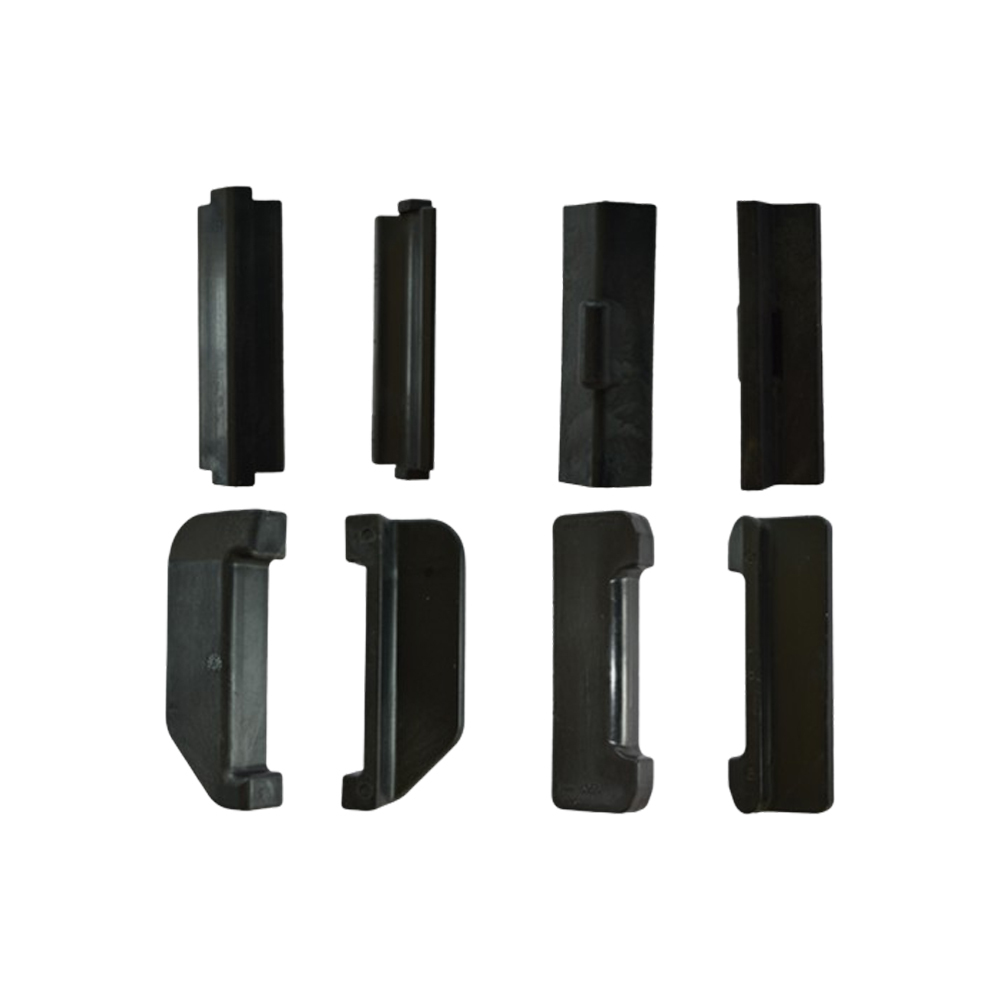

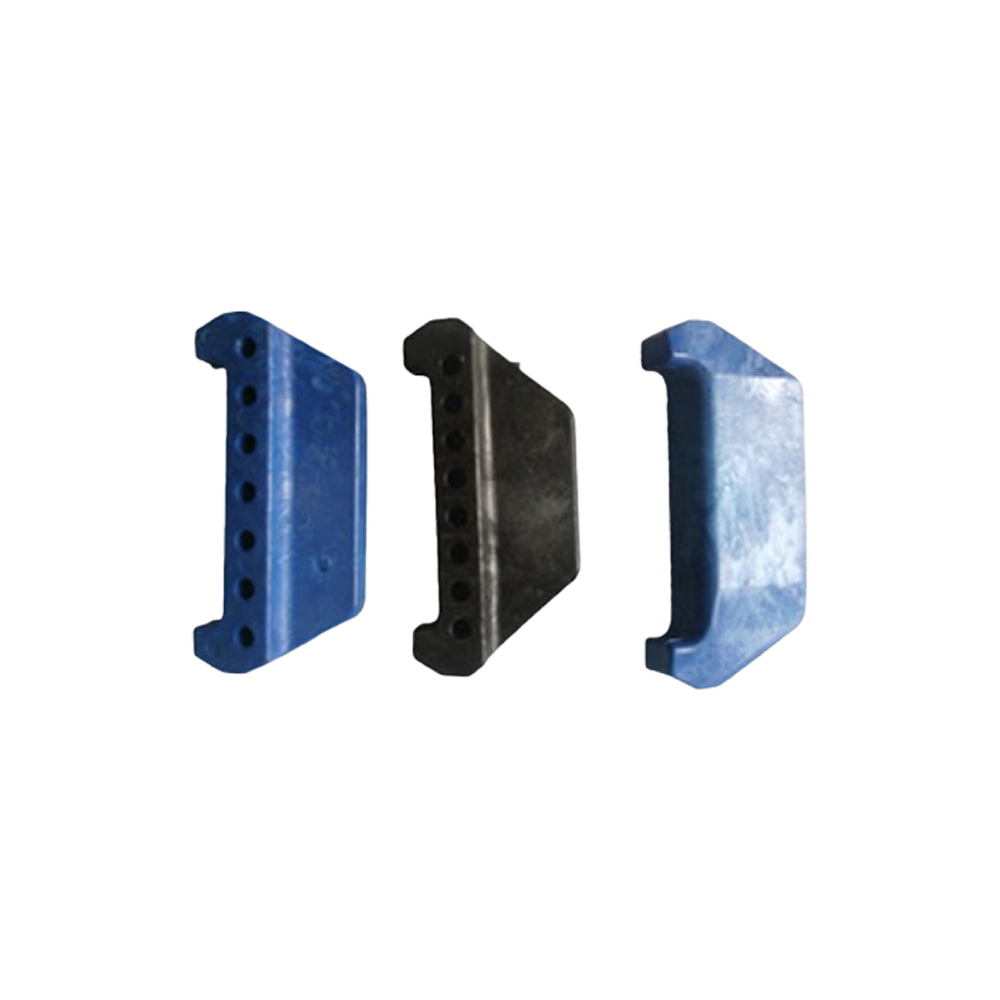

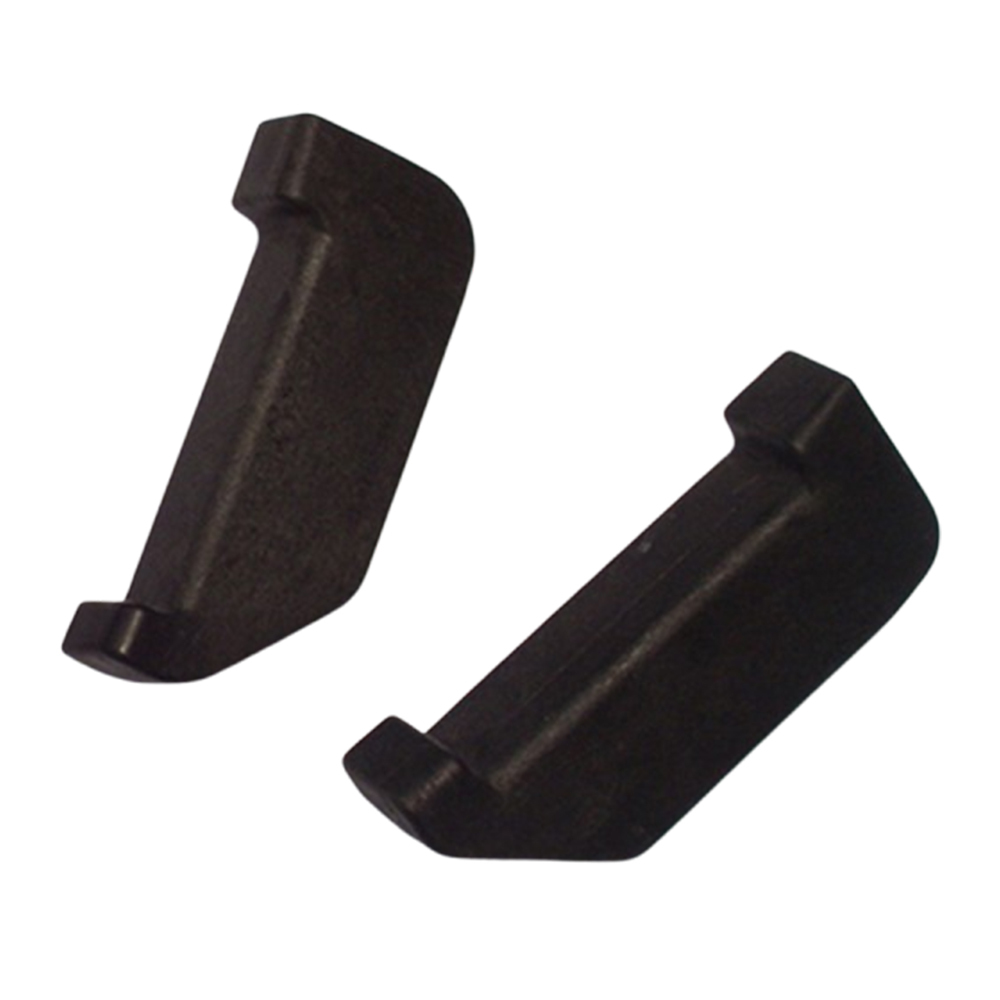

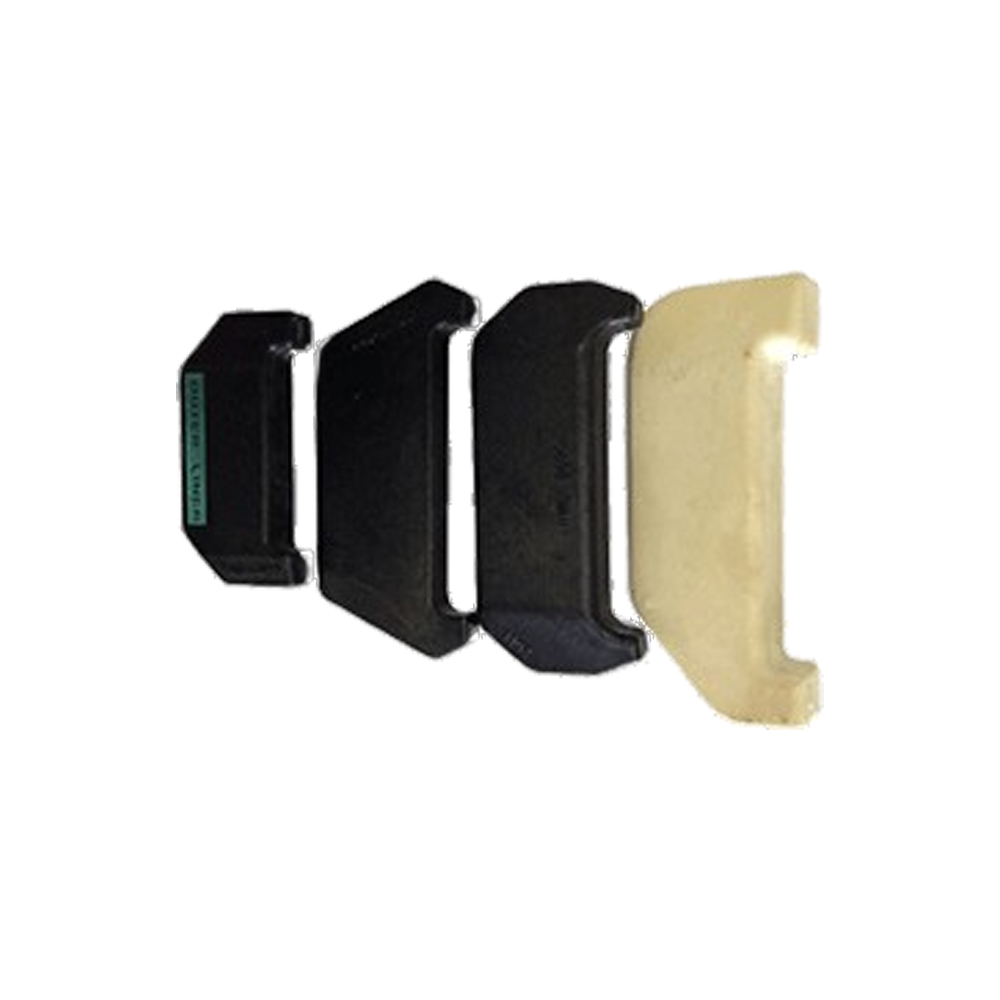

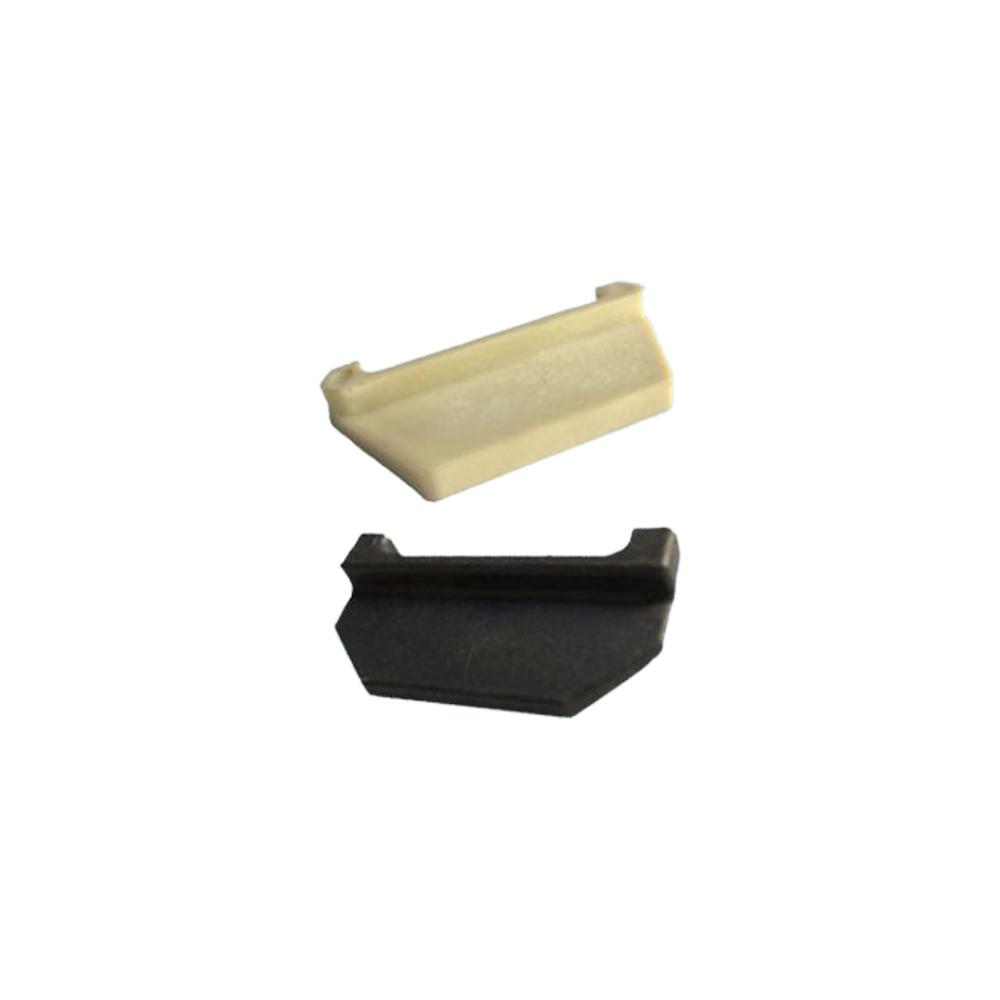

Railway Parts & Accessories Nylon Rail Insulators
Rail insulator, also called railroad insulator, rail insulation, or rail nylon insulator, is installed between steel rail and tie plate. It serves dual purposes of adjusting rail gauge and electrically insulating railroad rails, rail clips, and rail bolts from the interior of concrete sleepers. While functionally similar to rail pads, these insulators are thicker and essential for high-speed or high-load train operations.
Product Features
  • High-Quality Materials: Manufactured from premium nylon materials to ensure exceptional strength and durability, capable of withstanding harsh railway environments for extended service life and reduced maintenance costs.
  • Precision Engineering: Advanced manufacturing techniques guarantee consistent dimensions and perfect fit, crucial for track stability and safety, while facilitating easier installation and replacement.
  • Corrosion Resistance: Nylon construction provides inherent corrosion resistance suitable for diverse weather conditions, with optional coatings available for enhanced protection against rust and degradation.
Technical Specifications
Material PA6, PA66, PA66+GF30%
Density g/cm³ 1.3-1.45
Tensile Strength MPa ≥170
Elongation A 0.044
Bending Strength MPa ≥250
Impact Strength (No gap) KJ/m² ≥80
Melting Point ℃ 250 - 270
Insulation Resistance Ω ≥1×10⁸
Glass Fiber Content % 30-35
Hardness HRR ≥110
High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks 0 High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks 1
