1435MM Mechanical Digital Track Gauge

  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
Lugar de origem CHINA
Marca HTR
Quantidade de ordem mínima 1000
Preço Ngotiable
Detalhes da embalagem Exportar embalagem
Tempo de entrega Ngotiable
Termos de pagamento L/c, t/t
Habilidade da fonte 50000 PCS por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Nome do produto Medidor de faixa digital Medidor de faixa 1384-1470mm
Verifique o medidor ferroviário 1364-1450mm Distância consecutiva 1344-1430mm
Folga da flangeway 20-107mm Não posso. -200-+200mm
Tela de exibição OLED Tensão de potência DC3.4V ~ 5,2V (bateria recarregável)
Faixa de temperatura de trabalho -30 ℃～+55 ℃ Desempenho de isolamento ＞ 1MΩ
Peso ≤3kg
Destacar

1435mm mechanical track gauge

,

digital railway track gauge

,

railway track gauge with warranty
Deixe um recado
Descrição de produto

Product Description

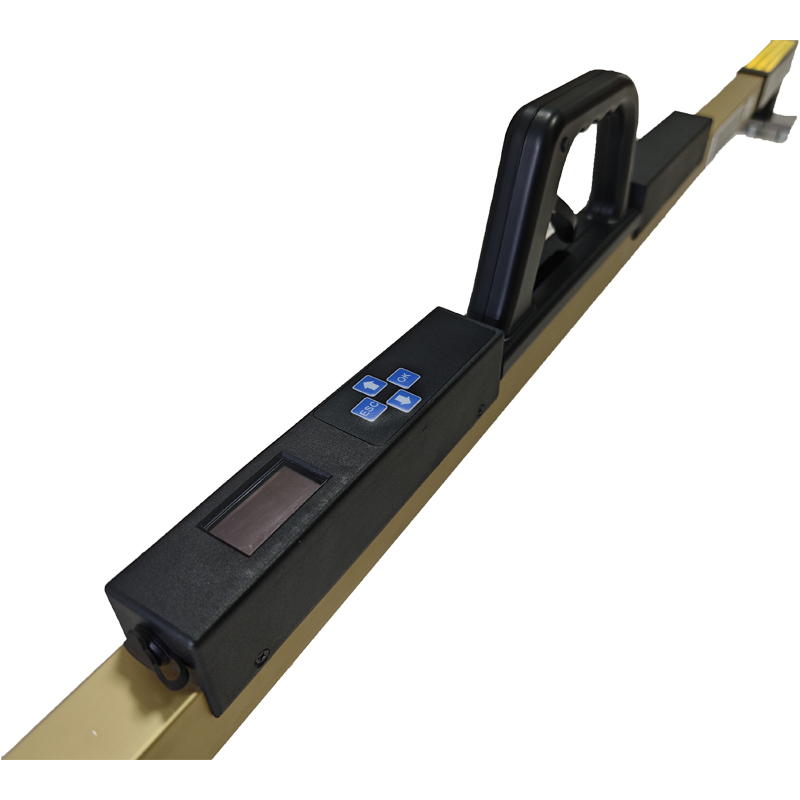

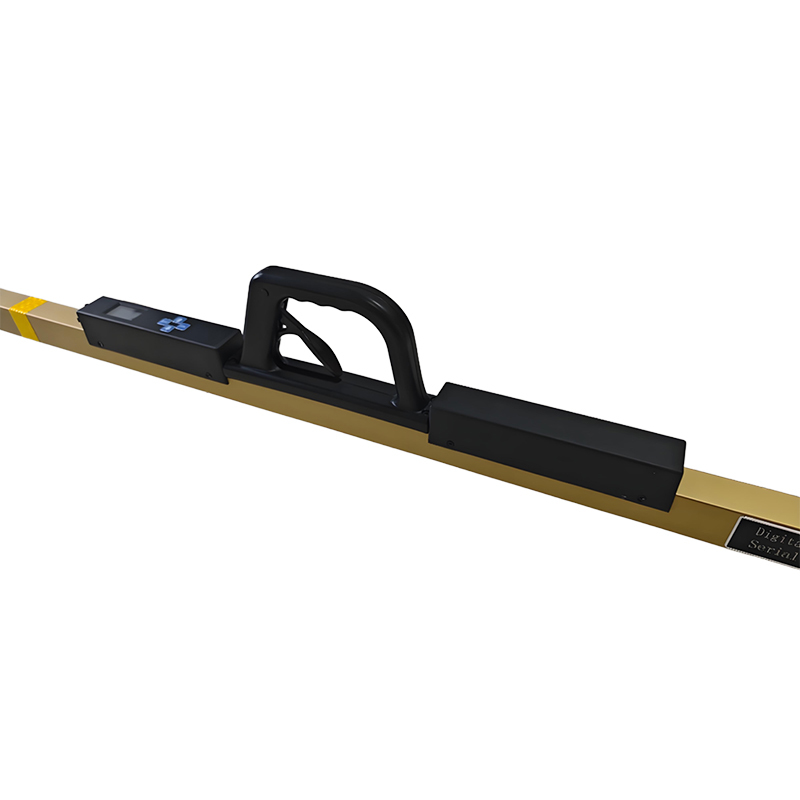

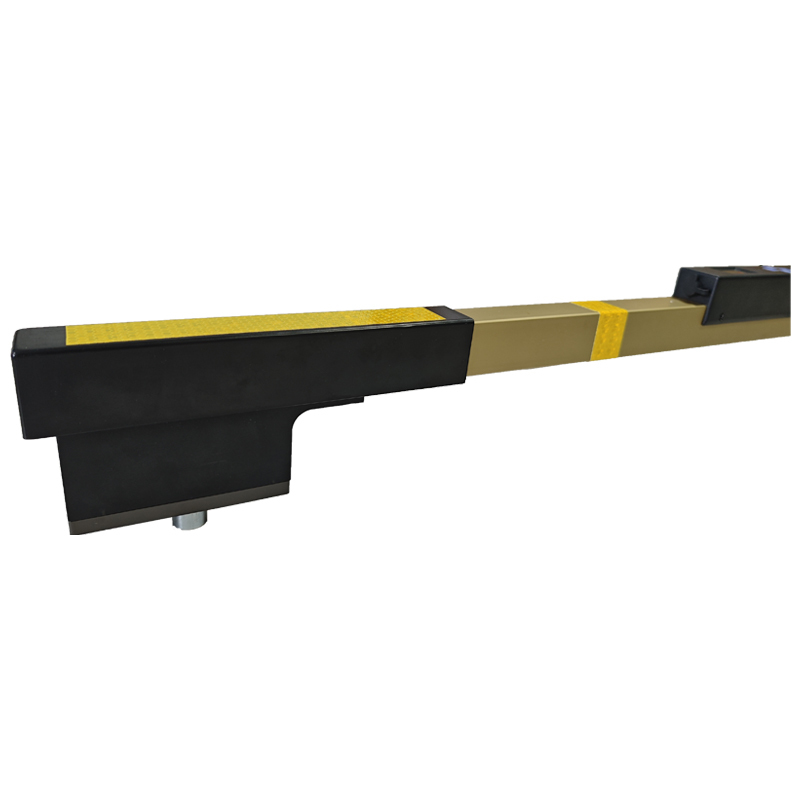

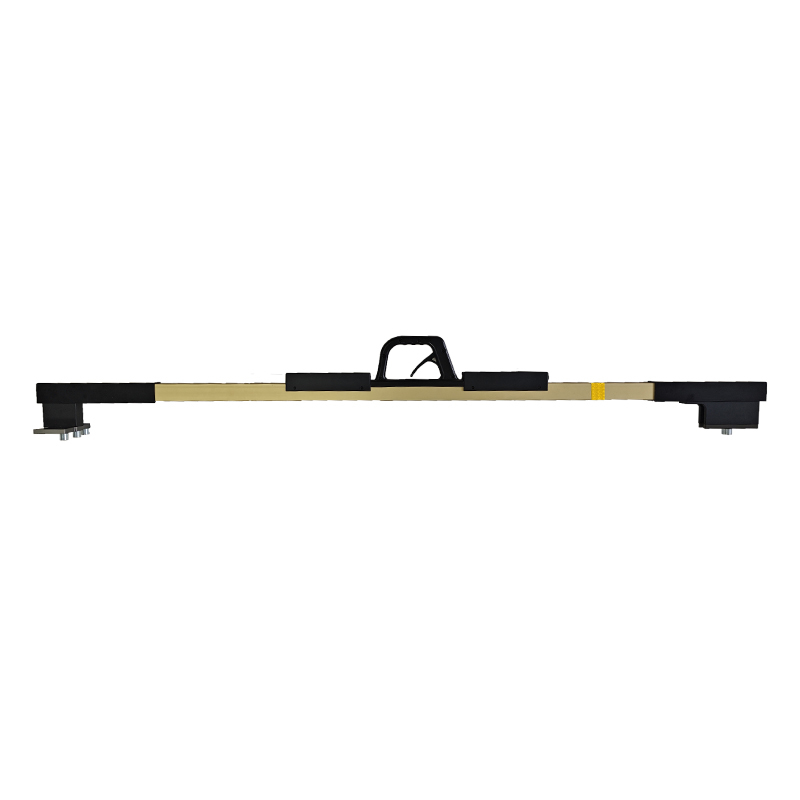

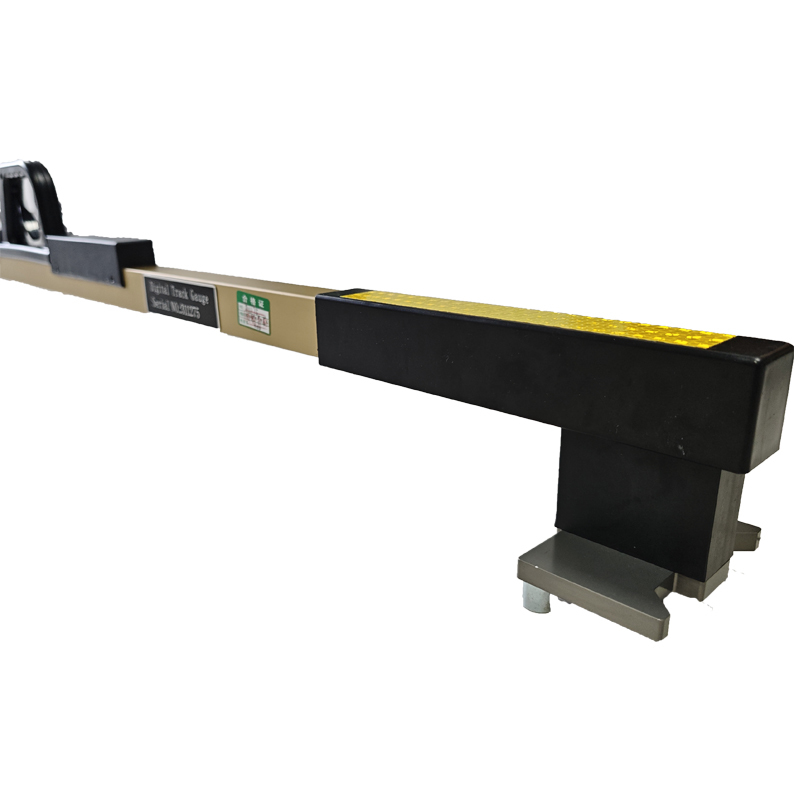

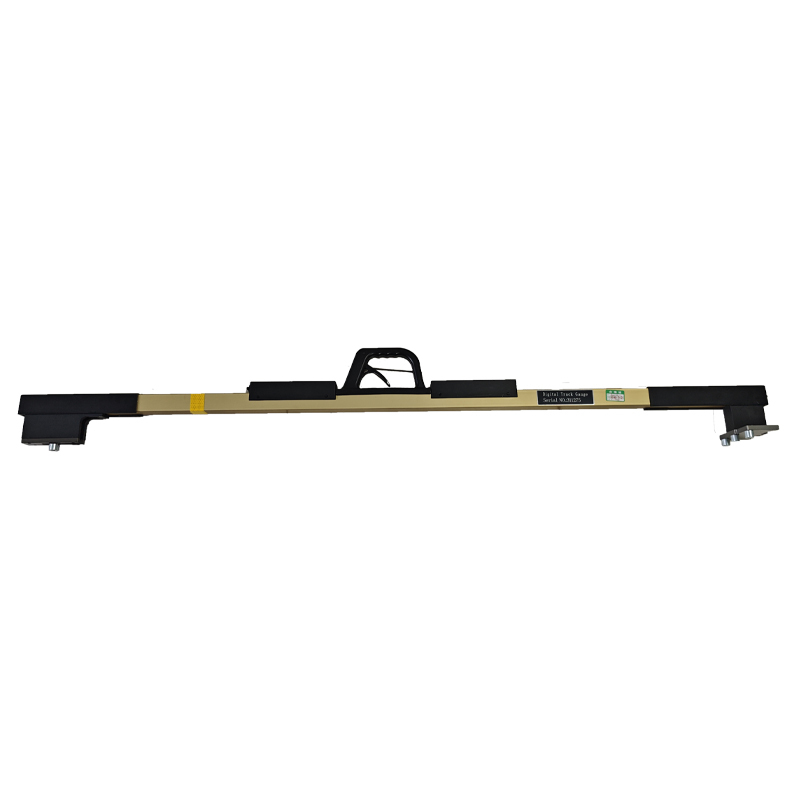

The T type digital track gauge is mainly used to measuring the track gauge ,cant, check rail gauge , back to back distance and flangeway clearance. The device is easy to operate ,and its measuring speed is very fast , which can be used either day or night. It is an ideal measurement tool for the railway engineers.

Product Performance Feature

Our digital track gauge is a high-precision railway inspection tool ,which developed according to the current railway situation of all weather, complex railway line , large temperature difference etc., It is composed of electronic and mechanical parts, the electronic part is integrated by microelectronic technology, single-chip technology, sensing technology, signal processing technology and other high-tech .This product has the following features:
· Stable performance and anti-electromagnetic interference: suitable for electrification, non-electrification, automatic block or other block section.
· Fast measurement speed: When used, the measured data can be displayed without additional manual operation after the measuring point is confirmed.
· High measuring accuracy: Precision transmission device with intelligent data processing system, it can be fast calibration. The built-in temperature compensation eliminates the material thermal expansion and cold contraction on the track gauge and super elevation measurement data, which improved the measurement accuracy.
· Large OLED display: the new light-emitting OLED material is adopted. Even in strong sunlight, the
measurements are still clear and intuitive. The characteristics of the instrument are particularly prominent when it is used at night or in tunnels.
· Wide temperature range: -30℃ ~ +55℃ ,it can meet the temperature requirements in most areas.
· Quick calibration operation: simple measurement process.
· Power saving function: no operation within 15 minutes, the system will automatically shut down.
· Large capacity battery: long standby time
· Insulated design
· Waterproof: could use in rainy day

Product Performance

Reference Value

Scope of Use

1435mm standard gauge railway with operating speed ≤ 250 km/h

Track Gauge

1384-1470mm

Measurement Uncertainty

±0.25mm

Check Rail Gauge

1364-1450mm

Back-to-back Distance

1344-1430mm

Flangeway Clearance

20-107mm

Cant

-200-+200mm

Measurement Uncertainty

±0.45mm

Display Screen

OLED

Power Voltage

DC3.4V～5.2V(Rechargeable Battery)

Working Temperature Range

-30℃～+55℃

Insulation Performance

＞1MΩ

Weight

≤3kg


1435MM Mechanical Digital Track Gauge 0

1435MM Mechanical Digital Track Gauge 1

1435MM Mechanical Digital Track Gauge 2

1435MM Mechanical Digital Track Gauge 3
