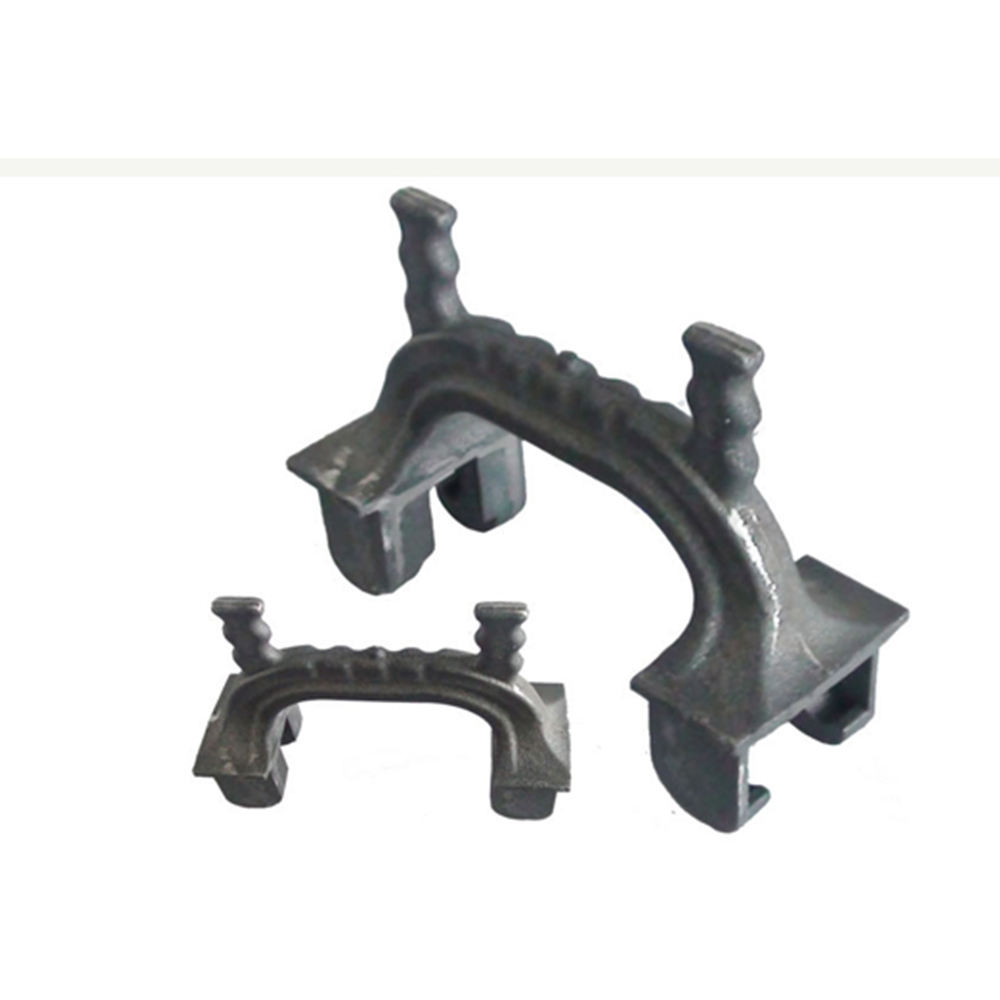

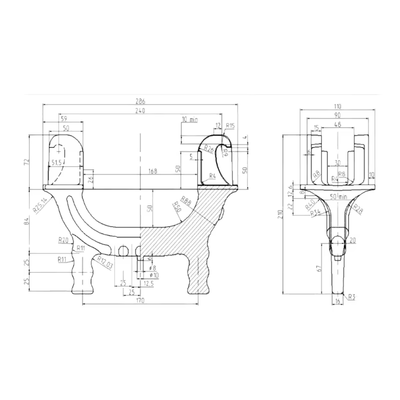

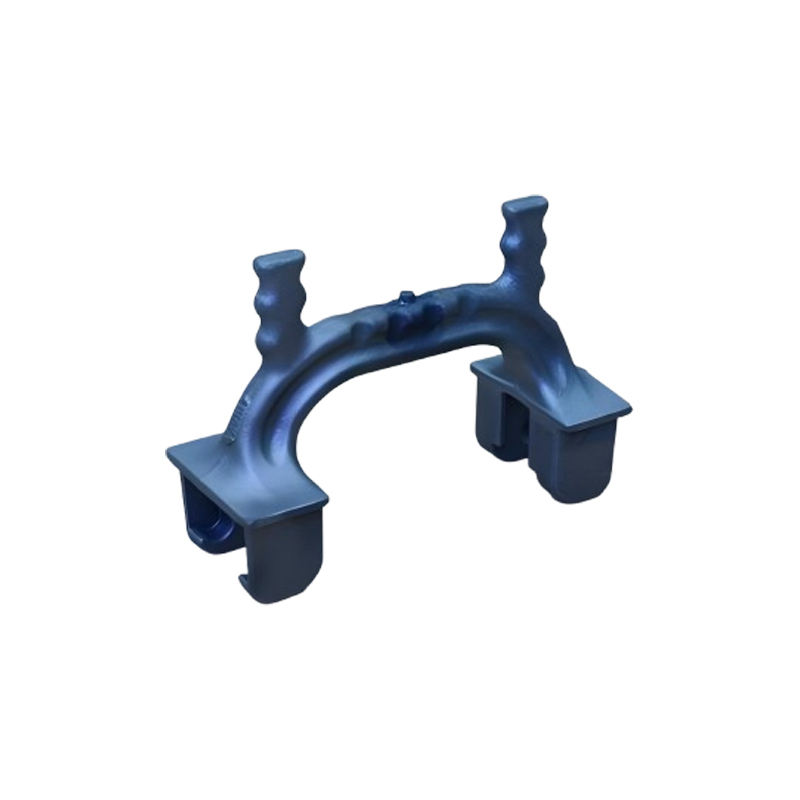

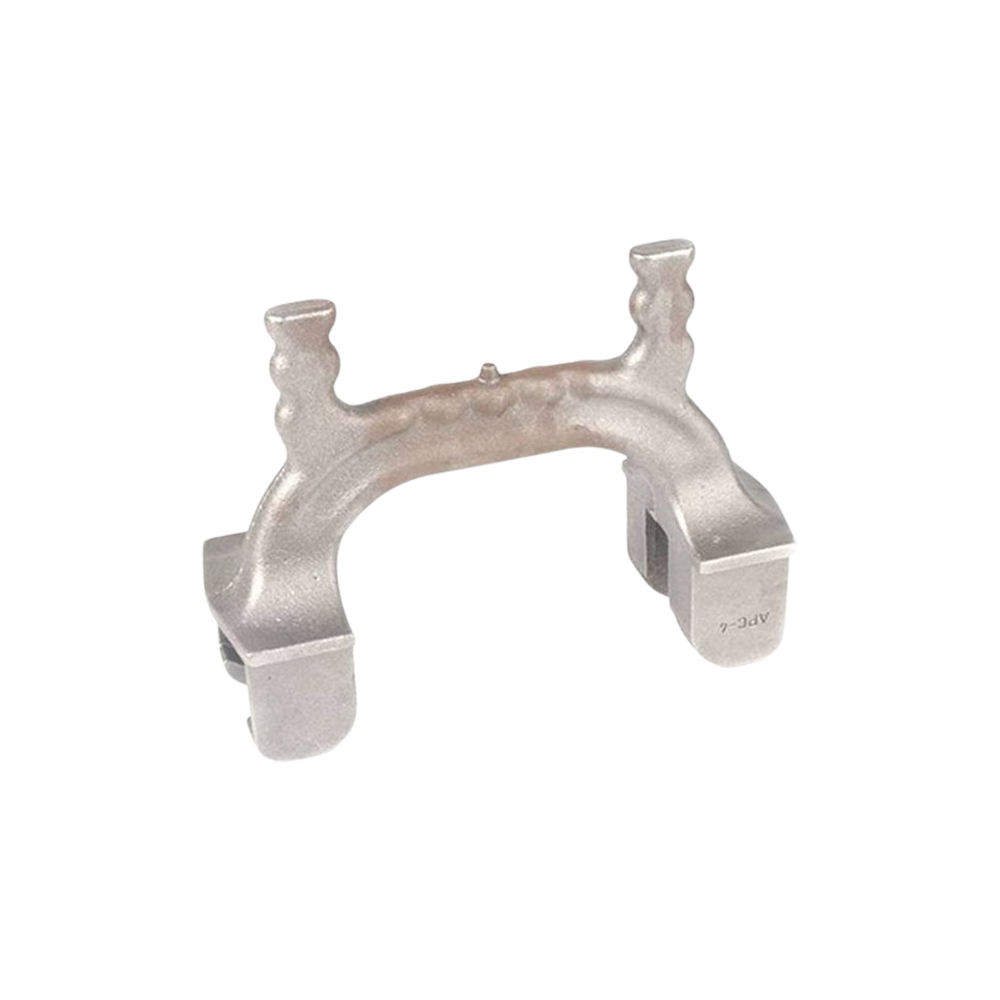

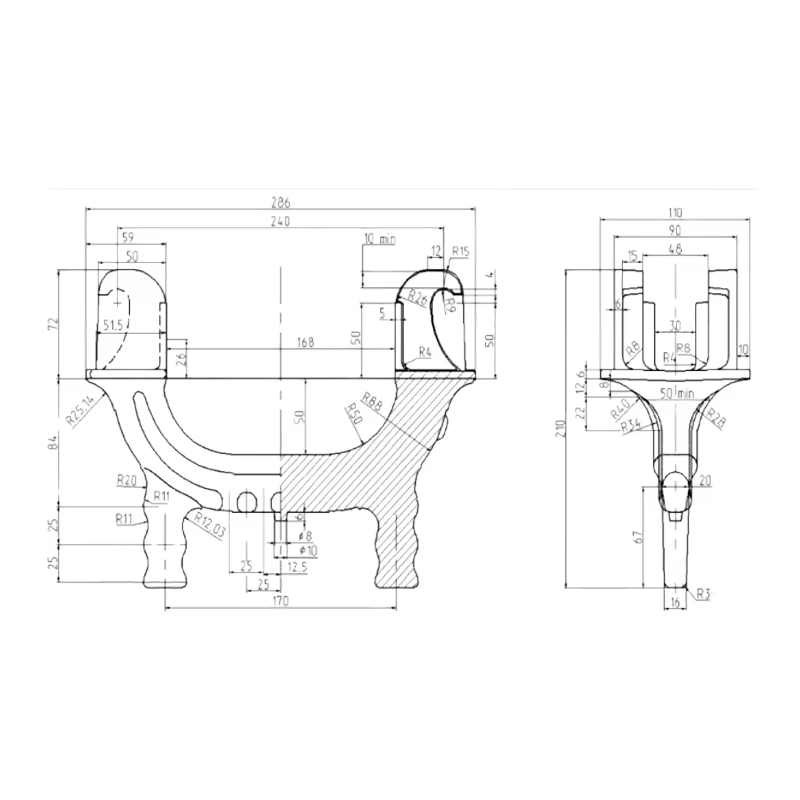

GOST Integral Casting Railway Shoulder for APC-4 Rail Clip

  • GOST Integral Casting Railway Shoulder for APC-4 Rail Clip
  • GOST Integral Casting Railway Shoulder for APC-4 Rail Clip
  • GOST Integral Casting Railway Shoulder for APC-4 Rail Clip
  • GOST Integral Casting Railway Shoulder for APC-4 Rail Clip
  • GOST Integral Casting Railway Shoulder for APC-4 Rail Clip
Lugar de origem CHINA
Marca HTR
Quantidade de ordem mínima 1000
Preço Ngotiable
Detalhes da embalagem Embalagem de exportação
Tempo de entrega Negociável
Termos de pagamento L/C,T/T
Habilidade da fonte 50.000 unidades por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Nome do produto Ombro ferroviário Tipo Ombro do trilho APC
Padrão de Fundição GOST 7293-85 Material Ferro Dúctil
Processo Fundição em Areia Tratamento de superfície Cor da natureza/HDG
Recurso Boa Dureza Aplicativo Sistema de fixação de trilhos de clipe APC
Pacote Pacote de exportação padrão
Destacar

GOST railway shoulder for APC-4 rail clip

,

integral casting railway track shoulder

,

APC-4 rail clip shoulder with GOST
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Deixe um recado
Descrição de produto
Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on rail shoulder, both of which are used for the fixing of elastic rail clips.

· Material and Manufacturing Process
The Pre-embedded Iron Base is usually made of high-quality cast iron or steel, which provides the necessary strength and durability to withstand the forces exerted by trains and maintain the integrity of the railway system. The manufacturing process involves precision casting or forging techniques to ensure the accuracy and reliability of the product.
· Installation and Application
During railway construction, the Pre-embedded Iron Base is installed in the designated position within the concrete sleeper, usually during the pouring of the concrete. Once the concrete has set, the base provides a stable platform for attaching elastic fasteners, which in turn secure the rail to the sleeper. This ensures that the track remains aligned and stable, preventing any potential derailments or accidents.
· Importance in Railway Safety
The Pre-embedded Iron Base plays a vital role in maintaining the safety and reliability of railway transportation. By providing a secure and stable foundation for the rail, it helps to prevent track movements and deformations, which can lead to serious accidents. Therefore, it is crucial to use high-quality materials and manufacturing techniques to ensure the durability and performance of the Pre-embedded Iron Base.

Product Performance

Reference Value

Product Name

Rail Shoulder

Type

APC Rail Shoulder

Casting Standard

GOST 7293-85

Processing

Sand casting

Surface Treatment

Nature Color/HDG

Feature

Good Hardness

Application

APC Clip Rail Fastening System

Package

Standard Export Package
GOST Integral Casting Railway Shoulder for APC-4 Rail Clip 0
GOST Integral Casting Railway Shoulder for APC-4 Rail Clip 1
