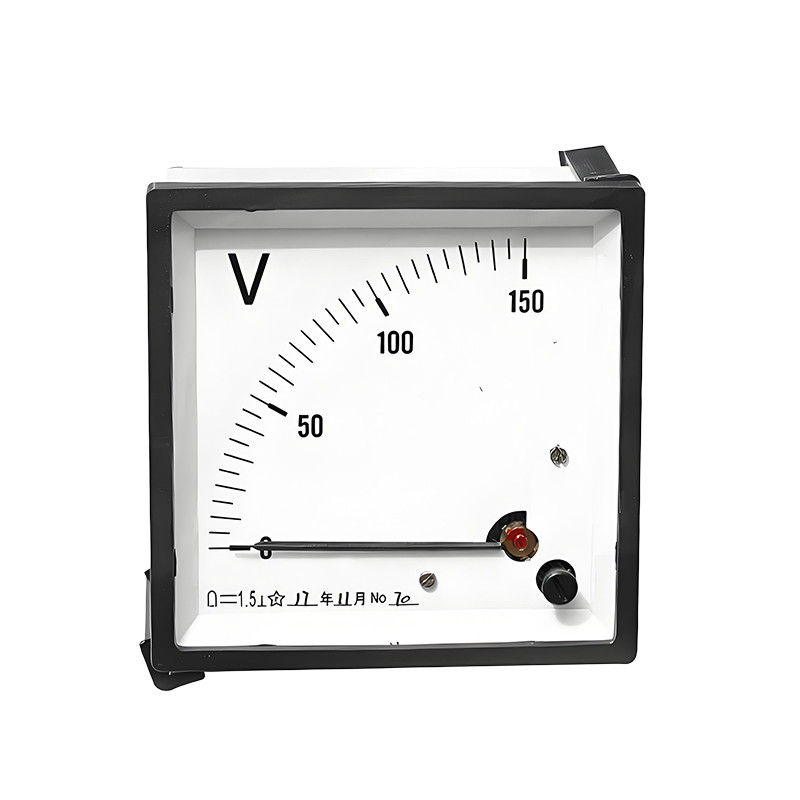

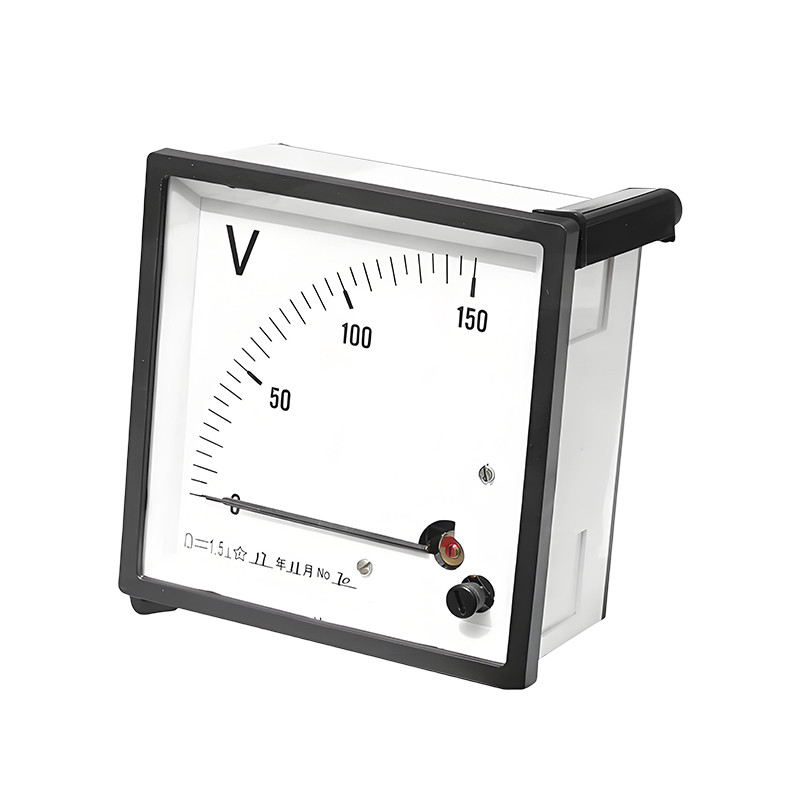

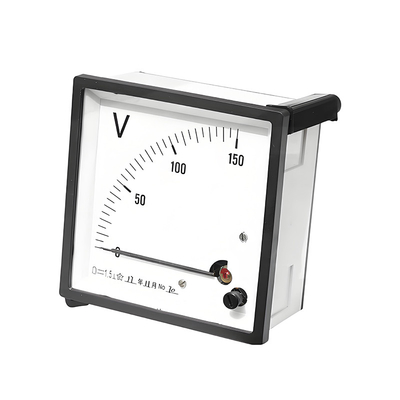

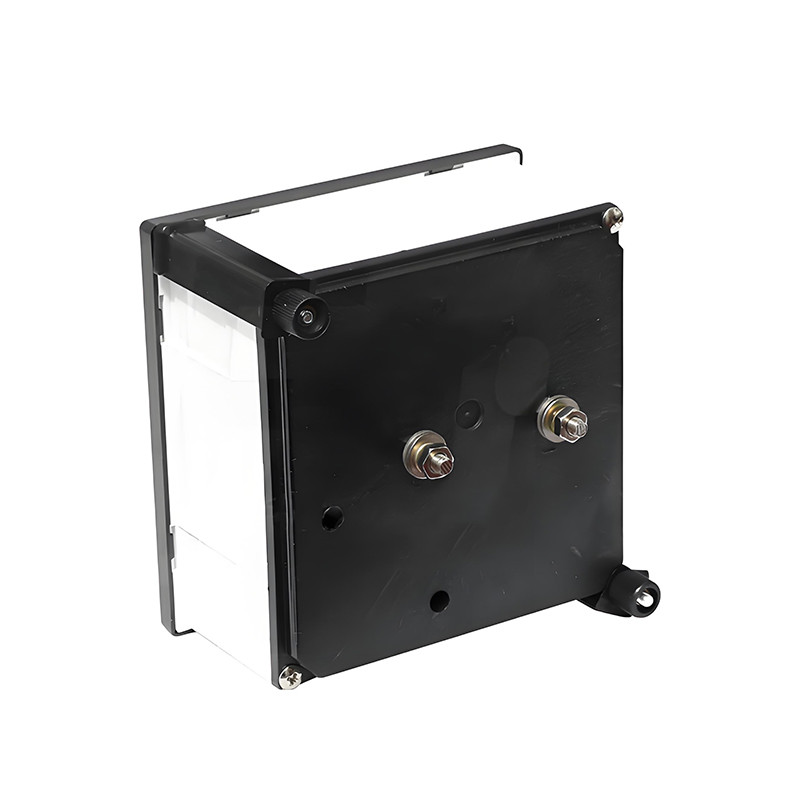

Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter

  • Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter
  • Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter
  • Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter
Place of Origin China
Marca HTR
Model Number HT15
Minimum Order Quantity 10pcs
Preço Negociável
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Accuracy Class Class 1.5 / Class 2.5 Operating Conditions -20°C to +50°C; Relative humidity ≤ 85%
Destacar

HT15 Battery Voltmeter

,

Locomotive Battery Voltmeter

,

Railway Vehicle Battery Voltmeter
Deixe um recado
Descrição de produto

Products Description

This product series includes both moving-coil (magnetoelectric) and moving-iron  (electromagnetic) type instruments. They are designed for installation on display panels  and large switchboards in various control and power distribution systems. These  instruments are used to indicate a wide range of electrical parameters, including AC/DC  current, voltage, power factor, active and reactive power, synchronization values,  frequency, expanded voltage, and overload current.

The performance and reliability of the products comply with the GB 7676-98 standard for analog electrical measuring instruments, ensuring stable operation and long service life in industrial and railway applications.


Specification

Item

Specification

Accuracy Class

Class 1.5 / Class 2.5

Operating Conditions

-20°C to +50°C; Relative humidity ≤ 85%

Voltage Influence

When the supply frequency changes by ±15% from the rated value, the indication
error does not exceed the basic permissible error

Mechanical Performance

Withstands acceleration of 30 m/s², impact frequency of 80–120 times/min,
and two hours of transport vibration

Mounting Position

Vertical use only

Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter 0
