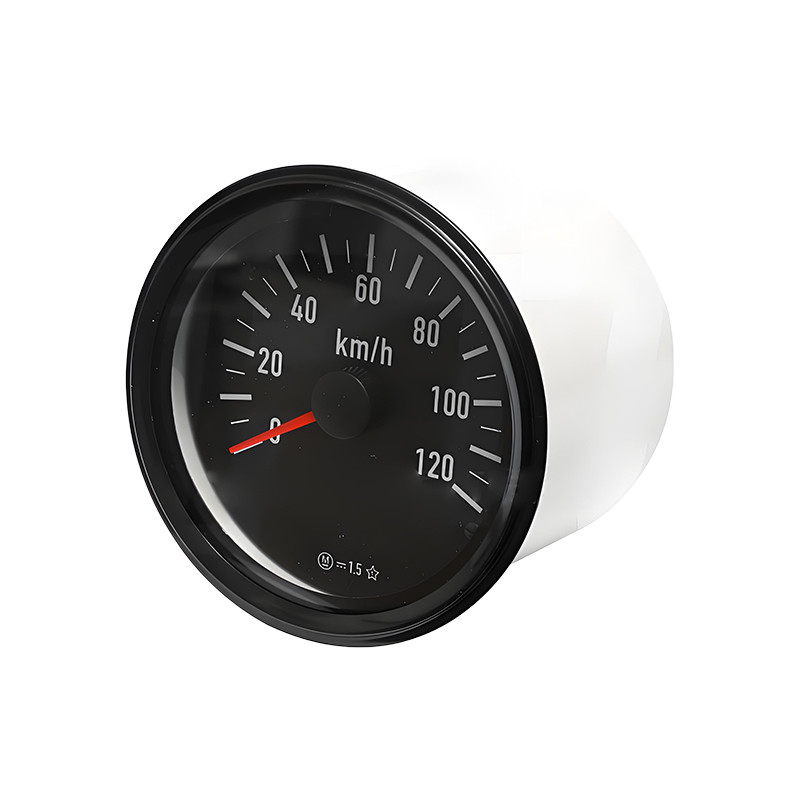

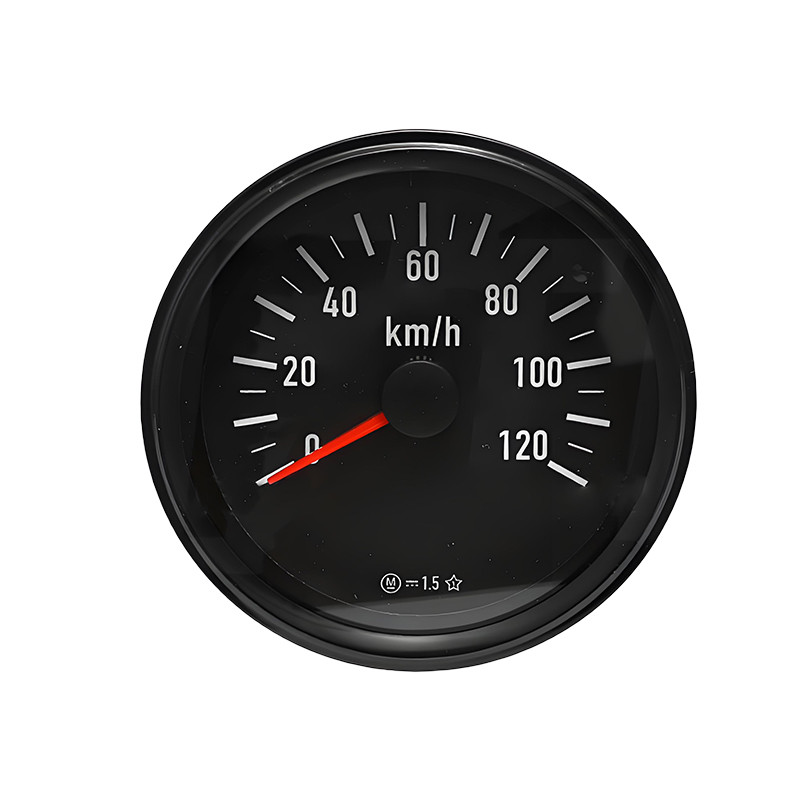

Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer

  • Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer
  • Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer
  • Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer
Place of Origin China
Marca HTR
Model Number HTM100-Aq
Minimum Order Quantity 10pcs
Preço Negociável
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Accuracy 0.015 Speed Range 0–100 / 0–120 / 0–160 km/h (customizable upon request)
Operating Voltage DC 110V Input Signal 7/14 mA current pulse signal
Internal Illumination DC 110V LED backlight Power Supply to External Sensor 15VDC (2-wire)
Dielectric Strength Power terminal: AC 1000Vrms, 50Hz, 1 minute; Signal terminal: AC 1000Vrms, 50Hz, 1 minute Operating Temperature -25°C to +70°C
Weight Approx. 350 g
Destacar

Locomotive Stepper Motor Speedometer

,

Locomotive Precision Instrumentation Speedometer

,

HTM100-Aq Stepper Motor Speedometer
Deixe um recado
Descrição de produto

Products Description

The HTM100-Aq is a precision speedometer driven by a stepper motor, designed to display real-time rotational speed in rail transit and industrial applications. It supports 7 mA / 14  mA current pulse signal input, offering high compatibility with both domestic and  international locomotive systems.

The instrument features a robust structure, excellent  shock resistance, and long service life. It ensures smooth pointer movement, high accuracy, and fast response, even under harsh operating conditions.

This speedometer is widely applicable to various types of locomotives and vehicles,  providing stable and reliable speed indication in metro systems, EMUs, and heavy-duty  rolling stock.



Specification

Item

Specification

Accuracy

0.015

Speed Range

0–100 / 0–120 / 0–160 km/h (customizable upon request)

Operating Voltage

DC 110V

Input Signal

7/14 mA current pulse signal

Internal Illumination

DC 110V LED backlight

Power Supply to
External Sensor

15VDC (2-wire)

Dielectric Strength

Power terminal: AC 1000Vrms, 50Hz, 1 minute; Signal terminal: AC 1000Vrms, 50Hz, 1 minute

Operating Temperature

-25°C to +70°C

Vibration Resistance

Complies with GB/T 25119-2010

Electrical Surge Protection

Meets EN 50121-3-2: 2006(8) standard

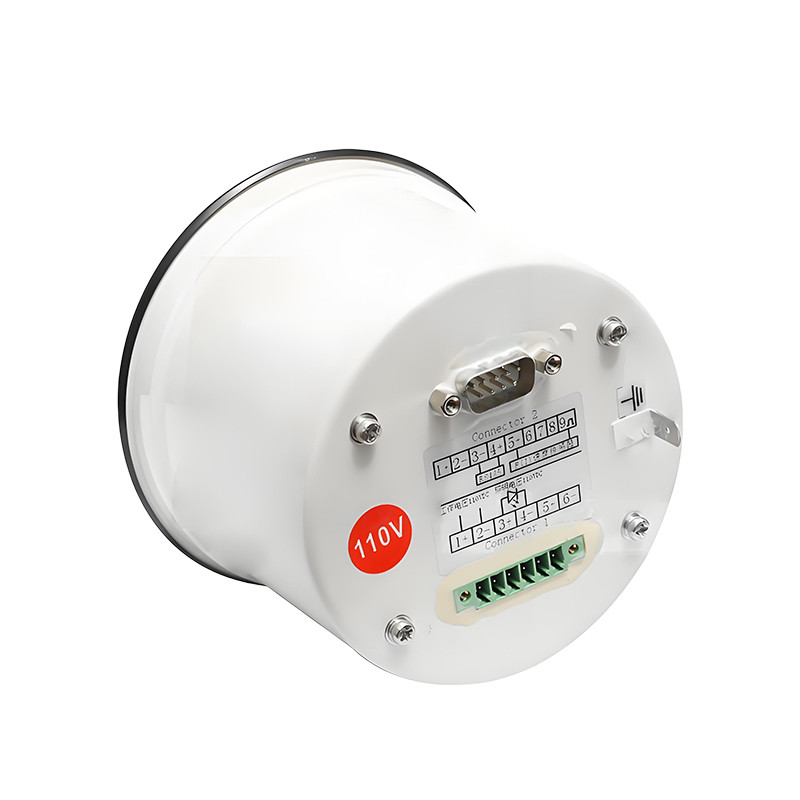

Connector Type

6-pin PHOENIX terminal block; 9-pin DSUB-9 plug

Weight

Approx. 350 g

Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer 0
