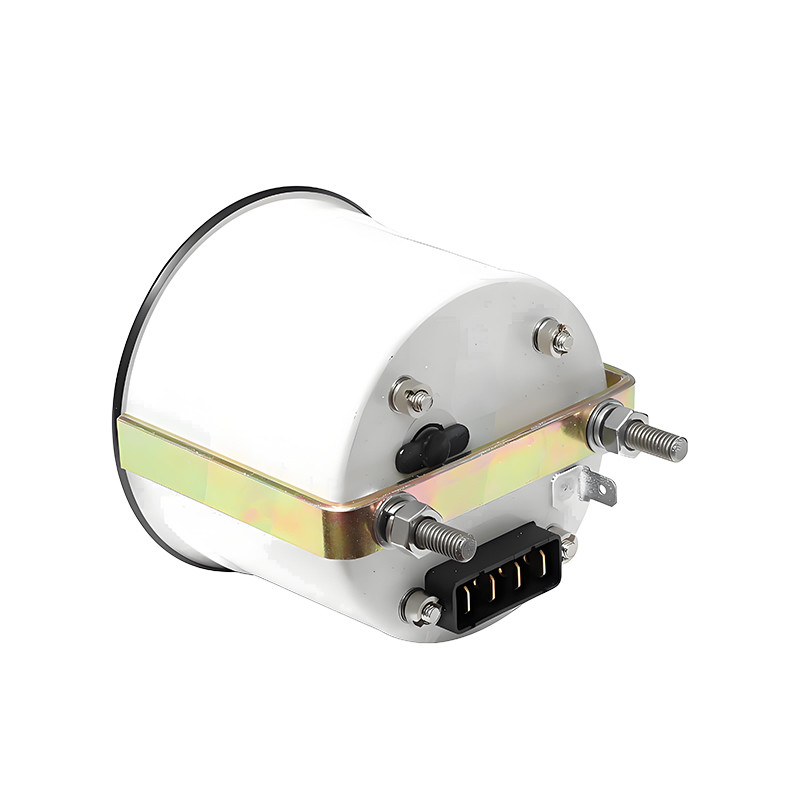

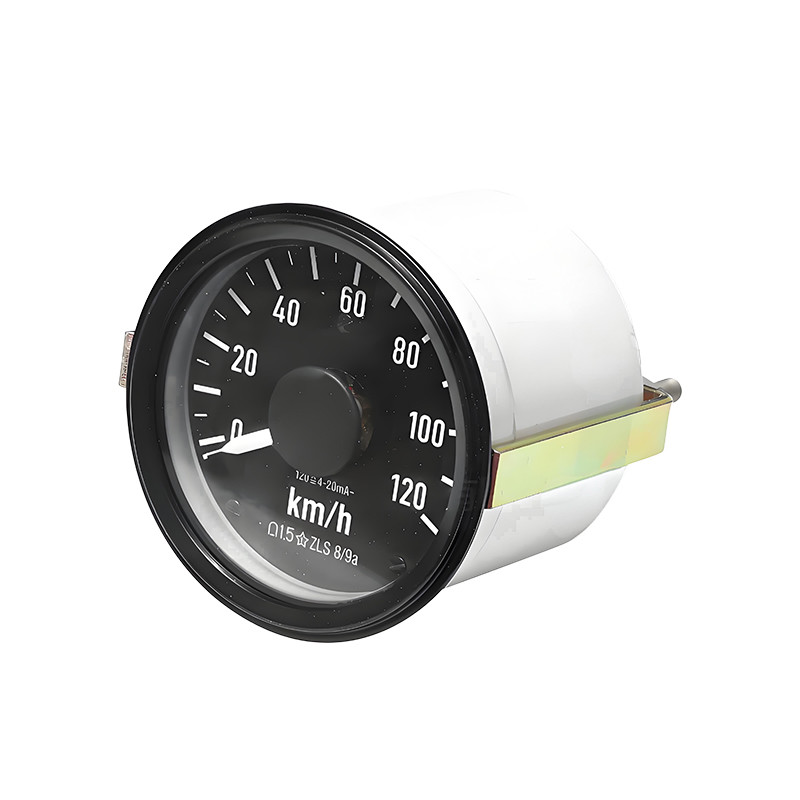

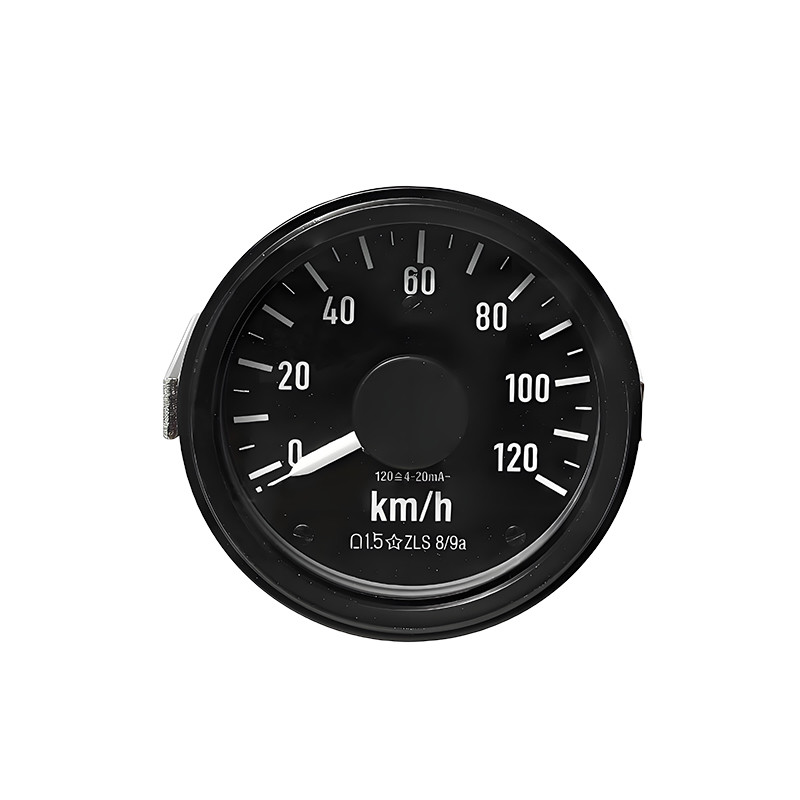

Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer

  • Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer
  • Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer
  • Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer
Place of Origin China
Marca HTR
Model Number HTS8/9a
Minimum Order Quantity 10pcs
Preço Negociável
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Accuracy ±1.5% Internal Illumination LED lighting, 24VDC or 110VDC
Operating Environment -25°C to +50°C, relative humidity not exceeding 95% Insulation Strength 1000V, 50Hz AC, duration 1 minute
Vibration Resistance Class B Dielectric Strength 1500V / 50Hz, duration 1 minute
Destacar

HTS8/9a Single needle Speedometer

,

Single needle Speedometer
Deixe um recado
Descrição de produto

Products Description

The speedometer consists of a movement mechanism, odometer, and casing. It features a robust structure, excellent shock resistance, and long service life. This instrument is used to indicate locomotive or EMU operating parameters such as speed, voltage, and current. It is widely applied across various metro and urban rail transit systems.


Specification

Item

Specification

Accuracy

±1.5%

Internal Illumination

LED lighting, 24VDC or 110VDC

Operating Environment

-25°C to +50°C, relative humidity not exceeding 95%

Insulation Strength

1000V, 50Hz AC, duration 1 minute

Vibration Resistance

Class B (TB/T3058)

Protection Rating

Front panel: IP54, Connector: IP40

Weight

Not more than 0.8 kg

Connector

0.8 × 6.3 plug-in terminal

Railway Vehicle Locomotive Instrumentation HTS8/9a Single Needle Speedometer 0
