Train Locomotive Instrumentation HTY1 Instrumentation Combination Module

  • Train Locomotive Instrumentation HTY1 Instrumentation Combination Module
Place of Origin China
Marca HTR
Model Number HTY1
Minimum Order Quantity 10pcs
Preço Negociável
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Range 0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa Accuracy Class 1.0, Class 1.6
Minimum Scale 20 kPa Dial Plate Black background with white markings or white background with black markings
Pointers Dual-needle: red and black Illumination Method High-reliability, high-brightness backlit dual-electrode lamp
Operating Voltage DC 24V ±30%, DC 110V ±30% Mounting Method Axial panel mounting
Destacar

HTY1 Instrumentation Combination Module

,

Locomotive Instrumentation Combination Module

,

Train Locomotive Instrumentation Combination Module
Deixe um recado
Descrição de produto

Products Description

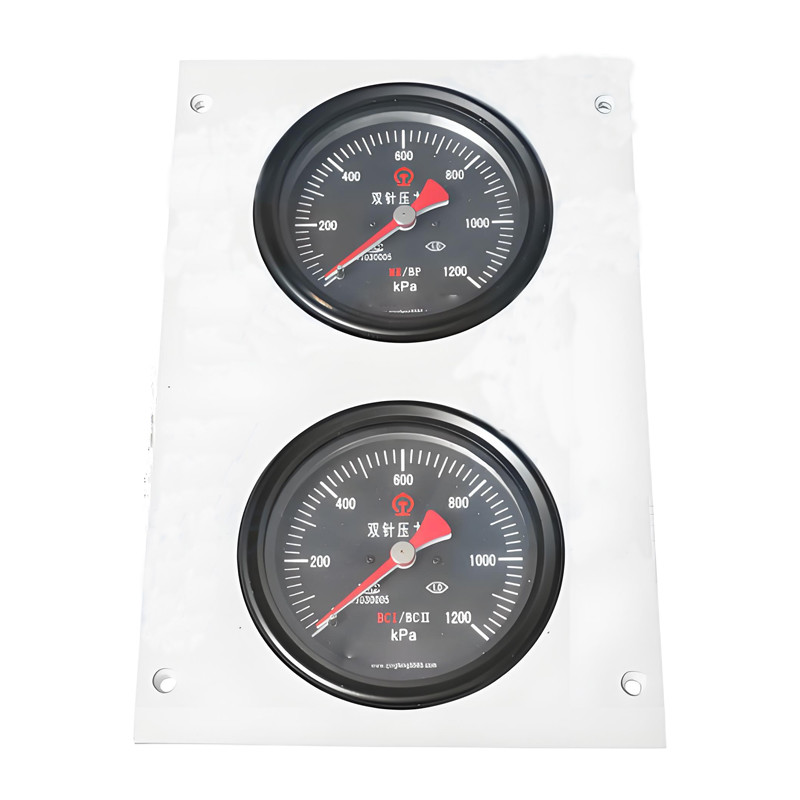

The multifunctional instrumentation combination module, composed of a locomotive dual-needle pressure gauge, adopts a modular design and is mounted on the locomotive control console. It serves as a vital interface for delivering real-time train operation parameters,  equipment status, and other essential information to the driver.


Specification

Item

Specification

Range

0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa

Accuracy

Class 1.0, Class 1.6 (in accordance with GB/T 1226-2010 standard)

Minimum Scale

20 kPa

Dial Plate

Black background with white markings or white background with black markings

Pointers

Dual-needle: red and black (black on top, red on bottom)

Illumination Method

High-reliability, high-brightness backlit dual-electrode lamp

Operating Voltage

DC 24V ±30%, DC 110V ±30%

Mounting Method

Axial panel mounting

Train Locomotive Instrumentation HTY1 Instrumentation Combination Module 0
