HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles

  • HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles
  • HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles
Lugar de origem China
Marca HTR
Certificação EN50155, EN45545, GB/T 25119, etc.
Número do modelo HTR2024-DC
Quantidade de ordem mínima 100 unidades
Preço Negociável
Detalhes da embalagem A caixa da caixa, caso de madeira, conforme exige
Tempo de entrega 15-50 dias, dependem do QTY
Termos de pagamento L/C, T/T, Western Union, Paypal
Habilidade da fonte 1.000 PCes/mês
Detalhes do produto
Destacar

automatic laser wheelset inspection machine

,

EMU wheelset inspection equipment

,

metro vehicle laser inspection system
Deixe um recado
Descrição de produto

Product Overview

The HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles is a comprehensive system comprising a main frame, wheelset
pre-inspection station, and dedicated modules for thrusting, lifting, rotation, and precision measurement. The assembly is further integrated with a hydraulic
system, an electrical control unit, and a high-performance microcomputer for data acquisition and processing. Engineered for high measurement accuracy,
the machine fully complies with all relevant industry standards.

Main Product Features
· Automatically measures technical parameters, performs conformity judgment, reads axle end markings and generates records in accordance with the requirements specified in TG/CL 224-2016 Rules for Assembly, Maintenance and Management of Railway Freight Car Wheelsets and Axles.
· Equipped with measurement item selection function. Operators can select measurement parameters as required. After selection, the system performs automatic measurement with intelligent prompts. It is easy to operate, provides detailed work prompts and wizards, and can judge whether the measurement results are qualified based on the preset limit values.
· Has intelligent automatic calibration and self-calibration functions. It is equipped with a built-in simulated standard wheelset, making later calibration and periodic inspection
more convenient.
· The operation interface is in Chinese, conforms to domestic operation habits, and has good human-machine interaction function. It can upload wheelset parameters and measurement results to the HMIS system, and supports printing and data management.
· Adopts world-leading high-precision displacement sensors and non-contact measurement method, which will not damage the workpiece.

Main Technical Indicators
Detection Parameters Measuring Range (mm) Maximum Permissible Error (mm) Repeatability (mm)
Wheel Diameter 750 ~ 930 -0.3 ~ 0 ≤0.1
Flange Height 24 ~ 38 ±0.1 ≤0.05
Flange Thickness 20 ~ 35 -0.2 ~ 0 ≤0.05
Rim Thickness 22 ~ 70 -0.5 ~ 0 ≤0.1
Rim Width 125 ~ 145 -0.5 ~ 0 ≤0.1
Wheelset Inner Distance 1345 ~ 1365 ±0.2 ≤0.1
Vertical Wear -2 ~ 2 -0.2 ~ 0 ≤0.05

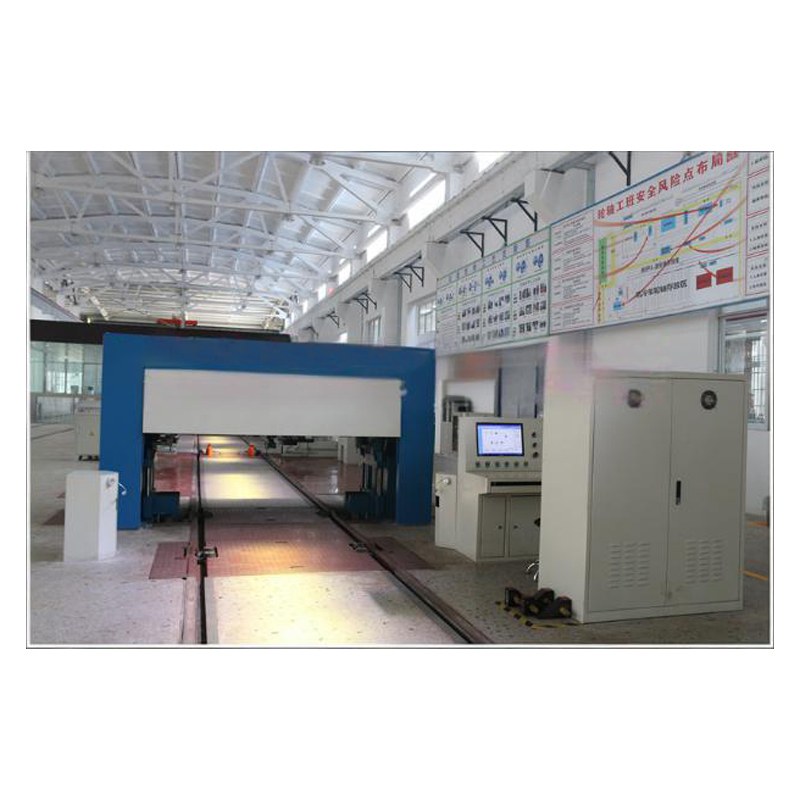

HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles 0

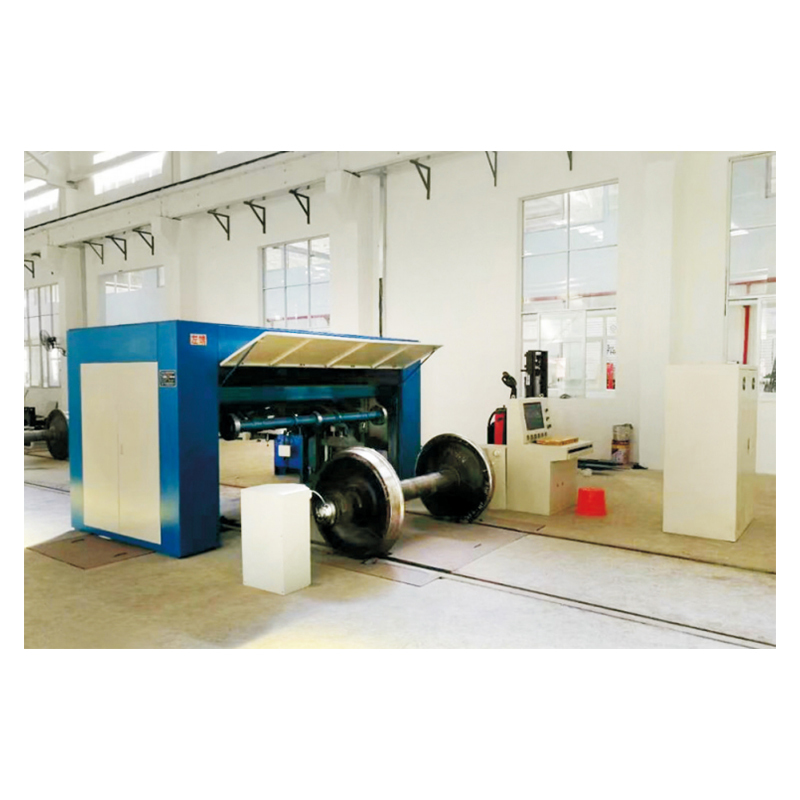

HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMU and Metro Vehicles 1
